Home EV Charger Installation: Is a Switchboard Upgrade Necessary?

Why Upgrading Your Switchboard is Crucial for Safe EV Charger Installation at Home

Absolutely! In numerous households throughout Melbourne, the installation of an EV charger often requires a significant switchboard upgrade. Many older switchboards are inadequate because they lack essential load capacity, RCD protection, or the necessary circuit space for the safe and compliant installation of an electric vehicle charger. Engaging a licensed electrician to conduct a comprehensive inspection is essential. This ensures that your switchboard is effectively upgraded, allowing your home to safely accommodate the charging of your EV without any associated risks or complications. Prioritizing safety is paramount when it comes to electrical installations.

With the rising popularity of electric vehicles in Melbourne, an increasing number of homeowners are opting to install EV chargers in their garages or driveways. However, many individuals are unaware that proper preparation of your home’s electrical system is vital for a successful installation. This preparation begins with a thorough evaluation of your switchboard. It is crucial to ensure that your electrical infrastructure can meet the demands imposed by an EV charger. This not only helps in maintaining safety but also enhances efficiency, making your charging experience significantly more reliable and effective.

At Direct Point Electrical, we have successfully installed numerous EV chargers across Berwick, Narre Warren, and Cranbourne in Melbourne’s outer east. In nearly every installation, the first component we assess is the switchboard, ensuring that it meets all necessary standards for safe and effective charging. Our expertise guarantees that each installation complies with local regulations, optimising performance. By prioritising safety and compliance, we provide peace of mind to our clients, assuring them that their charging solutions are both efficient and secure.

Understanding the Unique Requirements of EV Chargers Compared to Standard Power Points

EV chargers are fundamentally different from standard household appliances such as your toaster or washing machine. Most residential charging units, especially the 7kW and 22kW models, have specific requirements that need to be met:

• A dedicated circuit tailored to manage the electrical load efficiently, ensuring safety and compliance
• Mandatory RCD protection as outlined by AS/NZS 3000 standards to mitigate electrical risks
• Ample amp capacity, typically ranging from 32A to 50A, to meet the charger’s operational requirements
• Effective load balancing to prevent the risk of overloading other circuits within your home

Consequently, connecting an EV charger to an outdated fuse box or overloaded switchboard is not only impractical; it poses significant safety hazards and fails to comply with current regulations. For comprehensive guidance on the requirements for EV chargers in residential settings, it is essential to consult with professionals who thoroughly understand the intricacies involved.

Identifying the Need for a Switchboard Upgrade at Your Home

If your home was constructed more than two decades ago, it is highly likely that your switchboard lacks the capacity to effectively support an EV charger. Here are some indicators we assess during our evaluations:

• Old ceramic fuses or asbestos backing, both of which are outdated and hazardous materials
• The absence of RCD or safety switch protection, which is crucial for preventing electrical accidents
• Limited circuit space that restricts the installation of a new dedicated circuit for the charger
• Signs of burn marks, buzzing noises, or frequent tripping when using appliances, which indicate potential issues
• Lack of a 3-phase supply if you intend to install a faster 22kW charger, which could enhance charging speed

Any of these warning signs indicate potential risks for both safety and EV compatibility in your home and should not be ignored. It is crucial to address these concerns promptly to ensure a safe environment for your family and electronic devices.

Note: The Electric Vehicle Council strongly recommends the installation of a dedicated circuit for your EV. This precautionary measure prevents the overloading of existing circuits in your residence. When establishing a dedicated circuit, it is advisable to opt for a 15amp outlet and charger instead of the standard 10amp circuit, as this adjustment can enhance your charging rate by 50% and significantly reduce your charging time.

Comprehensive Steps to Upgrade Your Switchboard for EV Charging

At Direct Point Electrical, we are committed to making the upgrade process as straightforward and stress-free as possible:

1. Site Assessment – We conduct a detailed inspection of your existing switchboard, wiring, and main power supply to identify any issues.
2. Load Calculation – We evaluate whether your residence can manage the additional load from the EV charger to prevent overloading.

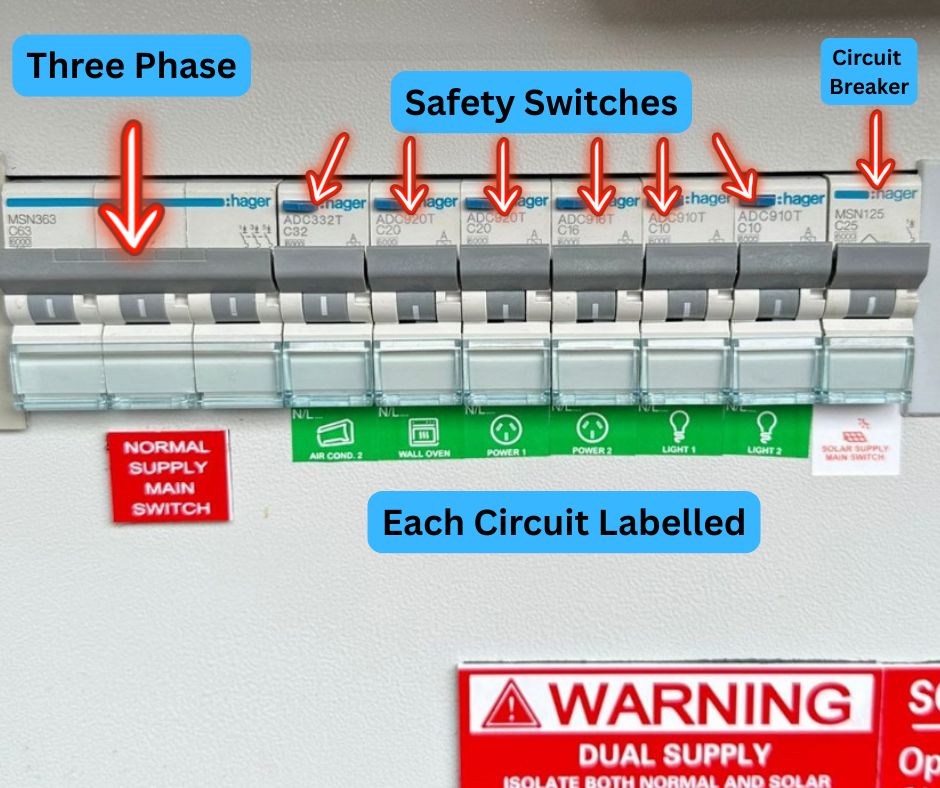

3. Upgrade Planning – If an upgrade is warranted, we provide a comprehensive quote for a new compliant switchboard equipped with RCDs, surge protection, and sufficient space for the EV charger.
4. Documentation & Compliance – We handle all paperwork with your energy distributor (AusNet or United Energy) and issue a Certificate of Electrical Safety upon installation completion.

Depending on the current condition and configuration of your switchboard, most upgrades can be completed within a single day. This efficiency allows you to quickly enjoy the convenience of charging your EV at home without unnecessary delays.

Understanding the Compliance Requirements for EV Chargers in Victoria

All electrical work performed in Victoria must comply with the AS/NZS 3000 Wiring Rules, which govern the installation of EV chargers. A licensed electrician is required to:

• Implement RCD protection for the circuit, safeguarding against potential electrical faults
• Ensure that the load from the charger does not exceed the main switch capacity to prevent overloads
• Submit necessary forms to your energy distributor to ensure compliance with regulations
• Provide a Certificate of Electrical Safety upon completion of the installation, confirming compliance

Attempting any DIY or unlicensed installations is not only illegal; it also voids warranties and can lead to serious fire hazards or insurance claim denials. Consulting with professionals is always the best route to ensure your installation is both safe and compliant with regulations.

Key Considerations for Homes with Existing Solar Panels or Batteries

If you already have solar panels or battery systems installed, that’s fantastic! However, it remains essential to analyse how the EV charger will interact with your existing solar energy system. Balancing the load between solar energy, battery storage, and EV charging requires meticulous planning and consideration.

We will collaborate closely with you to:

• Schedule charging times to maximise the utilisation of solar energy, ensuring efficiency and cost-effectiveness
• Ensure that your inverter and battery configuration can accommodate the energy draw from the charger without issue
• Recommend appropriate charger models that feature smart load management capabilities for optimal performance and energy efficiency

Determining the Need for a 3-Phase Power Supply Upgrade for EV Charging

Not necessarily. A 7kW charger operates effectively on single-phase power for most users. However, if:

• You desire faster charging times to reduce your wait
• You own two electric vehicles that need simultaneous charging
• Or you are running high-load appliances at the same time as your EV charger

… then considering a 3-phase upgrade could be beneficial. We can provide expert advice during your initial inspection to help you make informed decisions about your energy needs and the optimal setup for your home.

Essential Considerations for a Successful EV Charger Installation

If you are contemplating the installation of an EV charger at your home, prioritising your switchboard is essential. At Direct Point Electrical, we offer free site inspections, transparent pricing, and a seamless process to ensure safe, efficient, and future-proof EV charging solutions tailored to your home’s unique requirements. We are dedicated to delivering exceptional service that meets your specific needs and expectations.

Whether you reside in Berwick, Narre Warren, or any area in Melbourne’s outer east, we have the ideal EV charging solution to satisfy your unique needs and energy demands. Our team is committed to providing the best possible outcomes for our clients, ensuring reliability and efficiency in every installation.
